The SGM8477-1/3 are low noise, high precision CMOS difference amplifiers, which are designed to support precision differential signal processing. These devices can operate from 1.8V to 5.5V single supply, while consuming only 380μA quiescent current. The supply current of SGM8477-3 is less than 0.5μA in shutdown status, when external MCU control EN pin to logical "low".

The SGM8477-1/3 feature low noise, a 10μV maximum input offset voltage and zero-drift over time and temperature. These devices are suitable in low voltage and low power systems. They support rail-to-rail input and output operation. Meanwhile, the SGM8477-1/3 fit in tiny packages. They are designed to provide high performance for sensing high-side and low-side current accurately, such as single battery voltage.

The SGM8477-1/3 save external components by integrated matched resistors in differential applications. They have different versions for gains of 50 and 300.

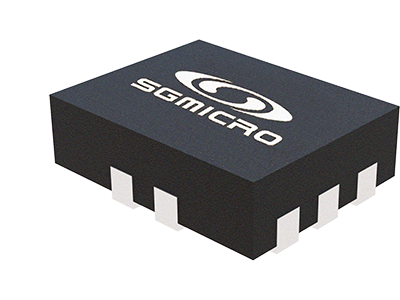

The SGM8477-1 is available in Green SC70-6 and UTQFN-1.8×1.4-10L packages. The SGM8477-3 is available in a Green UTQFN-1.8×1.4-10L package. They are all specified over -40℃ to +125℃ temperature range.
