MT3035NDCR是一款1.5MHz、5A恒定导通时间（COT）控制的同步降压转换器。由于其100%的占空比操作，它可以在2.5V到5.5V的输入电压下工作，并提供从0.6V到输入电平的输出范围。恒定导通时间控制方案简化了环路补偿，并提供了出色的负载瞬态响应。

MT3035NDCR消耗极低的15µA静态电流，因此实现了卓越的轻负载效率。控制回路中的高增益误差放大器提供了出色的负载和线路调节。专有的自适应接通时间有助于MT3035在整个负载范围内实现几乎恒定的开关频率。MT3035具有逐周期电流限制和打嗝模式，以保护过载或短路故障情况。

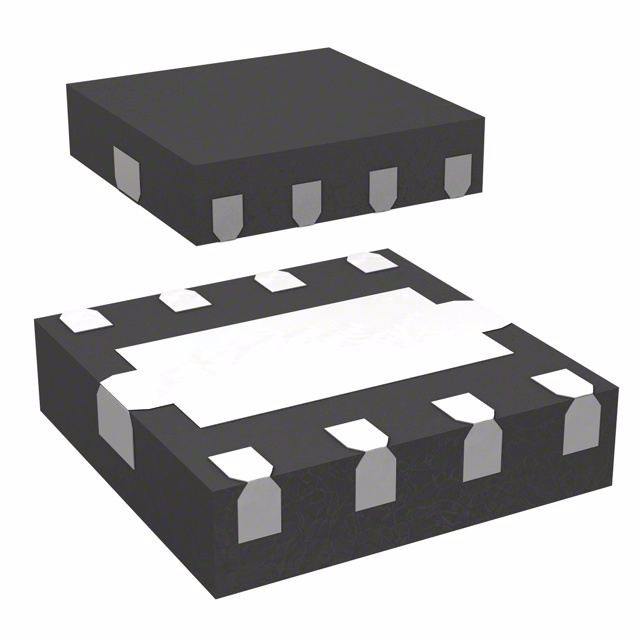

MT3035NDCR有10个DFN 3mm x 3mm封装的薄型引线。

MT3035NDCR FEATURES:

-Wide Input Range from 2.5V to 6V

-Proprietary Fast Transient Constant On Time Architecture Stable with low ESR Ceramic Output Capacitors

-+/-2%0.6V Feedback Voltage

-1.5MHz Switching Frequency

-15µA Low Quiescent Current

-4A Continuous Output Current,5A Peak

-1.21V Accurate Enable Threshold

-Up to 95%Efficiency

-100%Duty Cycle Operation

-Built-in 80mΩ/50mΩPower Switches

-Internal 1msec Soft-Start

-Cycle-by-cycle Current Limit Protection

-Over-Load and Short Circuit Hiccup Mode

-Open Drain Power Good Indication

-Output Discharge

-Thermal Shutdown Protection

-Available in Small DFN3X3_10L

-Pb-Free RoHS Compliant

MT3035NDCR APPLICATIONS:

-Solid-State and Hard Disk Drives

-WiFi RF Moudules

-Smart Phone and Tablets

-DC/DC Micro Modules
