The SGM8701 is a single, rail-to-rail input CMOS comparator with typical 300nA ultra-low power supply current. The comparator operates from a wide range of 1.4V to 5.5V supply voltage, and is guaranteed to operate at 1.4V, 2.5V and 5.0V. This feature is suitable for battery-powered applications.

The SGM8701 is optimized for micro-power, single-supply operation. The push-pull output stage supports rail-to-rail output swing and allows for operation with absolute minimum power consumption when driving any capacitive or resistive load.

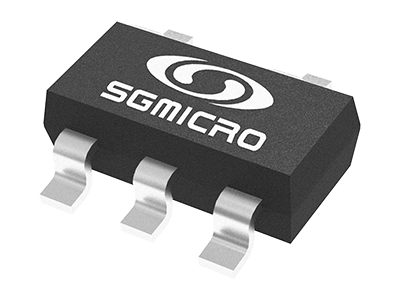

The SGM8701 is available in Green SOT-23-5 and SC70-5 space-saving packages. The small packages make this device ideal for use in hand-held electronics and mobile phone applications. It is rated over the -40°C to +85°C temperature range.

FEATURES

● Ultra-Low Quiescent Current: 300nA (TYP) at VS = 1.4V

● Wide Single-Supply Voltage Range: 1.4V to 5.5V

● Typical 6μs Propagation Delay at VS = 1.4V

● Rail-to-Rail Input and Output

● Push-Pull Output Current Drive: 19mA (TYP) at VS = 5V

● -40℃ to +85℃ Operating Temperature Range

● Available in Green SOT-23-5 and SC70-5 Packages

APPLICATIONS

Portable and Battery-Powered Applications

Alarm and Surveillance Circuits

Mobile Phones

RC Timers

Hand-Held Electronics

Window Detectors

IR Receiver
