The SGM321 (single), SGM358 (dual) and SGM324 (quad) are low cost, voltage feedback amplifiers. These devices can operate from 2.1V to 5.5V single supply, while consuming only 60μA quiescent current per amplifier. They provide rail-to-rail input with a wide input common mode voltage range and rail-to-rail output voltage swing. This feature makes SGM321/358/324 appropriate for buffering ASIC.

The SGM321/358/324 offer a gain-bandwidth product of 1MHz and an ultra-low input bias current of 10pA. They are well suited for piezoelectric sensors, integrators and photodiode amplifiers.

The SGM321/358/324 are designedintoawide range of applications, such as battery-powered instrumentation, safety monitoring, portable systems, and transducer interface circuits in low power systems.

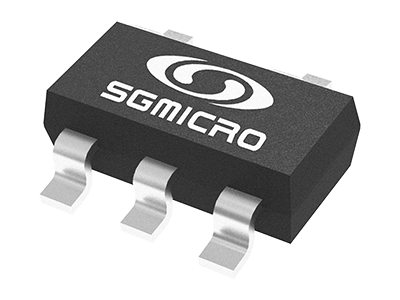

The SGM321 is available in Green SOT-23-5 and SC70-5 packages.

The SGM358 is available in Green SOIC-8, MSOP-8 and DIP-8 packages.

The SGM324 is available in Green TSSOP-14 and SOIC-14 packages. They are specified over the extended industrial temperature range (-40℃ to +85℃).

FEATURES

• Low Cost

• Input Offset Voltage: 5mV (MAX)

• Ultra-Low Input Bias Current: 10pA

• Unity-Gain Stable

• Gain-Bandwidth Product: 1MHz

• Rail-to-Rail Input and Output

• Supply Voltage Range: 2.1V to 5.5V

• Input Voltage Range: -0.1V to 5.6V with VS = 5.5V

• Low Supply Current: 60μA/Amplifier

• -40℃ to +85℃ Operating Temperature Range

• Small Packaging: SGM321 Available in Green SOT-23-5 and SC70-5 Packages

SGM358 Available in Green SOIC-8, MSOP-8 and DIP-8 Packages

SGM324 Available in Green SOIC-14 and TSSOP-14 Packages

APPLICATIONS

ASIC Input or Output Amplifiers

Piezoelectric Transducer Amplifiers

Battery-Powered Equipment

Portable Equipment

Sensor Interfaces

Medical Instrumentation

Mobile Communications

Audio Outputs

Smoke Detectors

Mobile Telephones

Notebook PCs

PCMCIA Cards
