The LM2902 is a quad, high-gain frequency-compensated operational amplifier, which can operate from 3V to 32V single supply or from ±1.5V to ±16V dual supplies while consuming only 860μA quiescent current.

The LM2902 features low power, low offset voltage and low bias current. It is well suited for a wide range of applications.

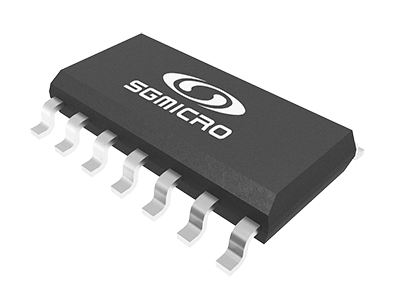

The LM2902 is available in a Green SOIC-14 package. It is specified over the -40℃ to +125℃ temperature range.

FEATURES

• Wide Supply Ranges Single Supply: 3V to 32V Dual Supplies: ±1.5V to ±16V

• Low Quiescent Current: 860μA (TYP)

• Low Input Offset Voltage: 5.8mV (MAX)

• Low Input Offset Current: 20pA (TYP)

• Low Input Bias Current: 10pA (TYP)

• Minimum Input Common Mode Voltage: (-VS) - 0.1V

• Maximum Differential Input Voltage: +32V/-32V

• Gain-Bandwidth Product: 1.1MHz

• Open-Loop Differential Voltage Gain: 111dB (TYP)

• Internal Frequency Compensation

• -40℃ to +125℃ Operating Temperature Range

• Available in a Green SOIC-14 Package

APPLICATIONS

Wearable Products

Temperature Measurements

Battery-Powered Systems

Sensors

Audio

Active Filters

Communications

Test Equipment
