The SGM8251 is a single, low noise and high precision operational amplifier optimized for high voltage operation from 4.5V to 36V single supply. The device provides rail-to-rail output operation.

The SGM8251 offers a low offset voltage less than 18μV and a low bias current. The combination of characteristics makes the SGM8251 a good choice for temperature measurements, pressure and position sensors, strain gauge amplifiers and medical instrumentation, or any other 4.5V to 36V applications requiring precision and long-term stability.

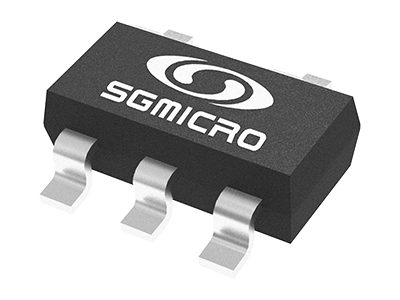

The SGM8251 is available in Green SOT-23-5, SOIC-8 and MSOP-8 packages. It is rated over the -40℃ to +125℃ temperature range.

FEATURES

● Low Offset Voltage: 18μV (MAX)

● Open-Loop Voltage Gain: 150dB (TYP)

● PSRR: 150dB (TYP)

● CMRR: 135dB (TYP)

● 0.1Hz to 10Hz Noise: 0.4μVP-P

● Input Voltage Noise Density: 20nV/√Hz at 1kHz

● Gain-Bandwidth Product: 2.8MHz

● Overload Recovery Time: 3μs

● Rail-to-Rail Output Swing

● Supply Voltage Range: 4.5V to 36V

● Low Supply Current: 450μA (TYP)

● -40℃ to +125℃ Operating Temperature Range

● Available in Green SOT-23-5, SOIC-8 and MSOP-8 Packages

APPLICATIONS

Pressure Sensors

Temperature Measurements

Precision Current Sensing

Electronic Scales

Strain Gauge Amplifiers

Handheld Test Equipment

Thermocouple Amplifiers

Medical Instrumentation
