The SGM8051/3 (single), SGM8052/5 (dual) and SGM8054 (quad) are high speed operational amplifiers with voltage feedback function. These devices can operate from 2.5V to 5.5V single supply. The SGM8051/2/3/4/5 feature an 8mV maximum input offset voltage and offer a low supply current of 2.3mA/amplifier.

The SGM8051/2/3/4/5 have excellent performance. They exhibit a wide bandwidth of 250MHz (G=+1) and a 0.1dB gain flatness of 37MHz (G=+2).

The SGM8051/2/3/4/5 provide wide input common mode voltage range and rail-to-rail output swing. The fast settling time and low distortion make the operational amplifiers appropriate for high speed ADC/DAC.

The supply current of SGM8053/5 is 75μA in shutdown mode. The devices are suitable for use in portable instrumentation and battery-powered systems.

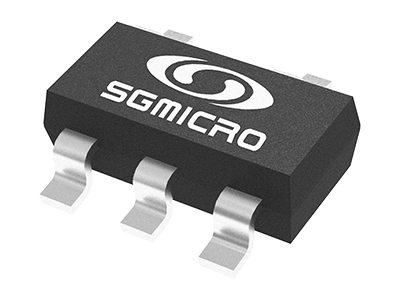

The SGM8051 is available in Green SOT-23-5 and SOIC-8 packages. The SGM8052 is available in Green SOIC-8 and MSOP-8 packages.

The SGM8053 is available in Green SOT-23-6 and SOIC-8 packages. The SGM8054 is available in Green SOIC-14 and TSSOP-14 packages.

The SGM8055 is available in a Green MSOP-10 package. They are specified over the extended -40℃ to +125℃ temperature range.

FEATURES

● High Speed: -3dB Bandwidth (G = +1): 250MHz Slew Rate: 130V/μs Settling Time to 0.1% with 2V Step: 58ns

● Excellent Video Performance (RL = 150Ω, G = +2): 0.1dB Gain Flatness: 37MHz Diff Gain: 0.03%, Diff Phase: 0.08°

● Input Offset Voltage: 8mV (MAX)

● Rail-to-Rail Output

● Supply Voltage Range: 2.5V to 5.5V

● Input Common Mode Voltage Range: -0.2V to 3.8V with VS = 5V

● Low Supply Current: 2.3mA/Amplifier (TYP) 75μA Shutdown Current for SGM8053/5

● Small Packaging: SGM8051 Available in Green SOT-23-5 and SOIC-8 Packages SGM8052 Available in Green MSOP-8 and SOIC-8 Packages SGM8053 Available in Green SOT-23-6 and SOIC-8 Packages SGM8054 Available in Green TSSOP-14 and SOIC-14 Packages SGM8055 Available in a Green MSOP-10 Package

APPLICATIONS

ADC

DVD

Filter

Hand Set

Imaging

Base Station

Photodiode Preamp
